6mm-50mm NDT Testing Equipment Rebar Location System for rebar diameter / distribution

Brand Name : SAMYON

Place of Origin : CN

MOQ : 1

Price : Can be negotiated

Payment Terms : Western Union, MoneyGram, , T/T, D/P, D/A

Supply Ability : 999/mth

Delivery Time : 8-10days

Packaging Details : Carton

Model Number : SY-R51

Certification : ISO

Name : Rebar locator

Applicable Diameter : 6mm~50mm

Diameter Test Range : 6mm~50mm

Coating Test Range : Low : 6mm~90mm; High : 7mm~190mm

Power Supply : 6 Dry Cells, Work More Than 30 Times

Contact Now

NDT Test Equipment Rebar Location System To Test Rebar Diameter, Distribution, Coating Thickness In Concrete.

NDT Test Equipment Rebar Location System Use Lemo Connector Clip

SYR51+ rebar Location system is used to test rebar diameter, distribution, coating thickness in concrete.


NDT Test Equipment Rebar Location System Specification
<Technical specification for test of reinforcing steel bar in concrete> JGJ/T152-2008

NDT Test Equipment Rebar Location System Performance
Longer service life of the Connector Clip: The instrument has long service life because of using Lemo Connector Clip which comes from Swiss and uses for aircraft industry.
Good quality of signal cable: The signal cable has long service life because of its flexible and substance.
High precision and stability: The instrument can locate the steel-bar accurately and quickly.
Longer service life of the sensor: Improve the service life by paste abrasion resistance allowance bottom of the sensor
Single sensor: No-change sensor in test, switching between high and low test range can assure the precision of test data and the test depth.
Display test information real-time: Display the test data directly to avoid man-made errors.
Grid and section scan mode: Instrument can display steel bar distribution and scan steel bar without concrete boundary limited.
Three-wheel steel-bar scan system: The system can assure scan path along line and the precision of test data.
Powerful Windows data process and analysis software: Software can display analysis result by diagram. Test data can be export to word or Excel easily.

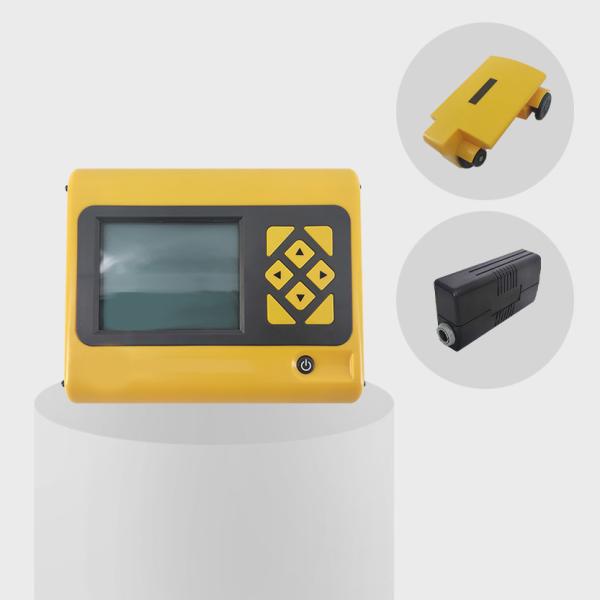

NDT Test Equipment Rebar Location System Picture:

Technical Data

Applicable rebar diameter 6mm~50mm
Tested range of concrete coating thickness Low range: 6mm~90mm; High range: 7mm~190mm
Permissible error   Low range High range
±1 6~59 7~79
±2 60~69 80~119
±4 70~90 120~190
Tested range of rebar diameter 6mm~50mm
Permissible error of rebar diameter test ±1 grade
Applicable environmental Temperature: -10ºC~+40ºC; Dampness: <90%RH
EMI: no Strong electromagnetic field
Power supply 6 dry cells, work more than 30 times
